A range of three individual stainless steel funnel with capacity of 40, 100 and 500 ml. Can be used with a glass vial and connect suction through a silicone plug cod. 16606.
This is a very practical and can be sterilized by flaming or autoclaving. There funnel cover, which is graduated within. The frit ensures uniform distribution of the liquid through the entire surface area of the membrane. The clamp ensures a quick connection to the base. All these funnels operated membranes 47 or 50 mm diameter.

Stainless steel quality: High grade stainless steel B.S. 304S31 / AISI 304
Maximum pressure: Vacuum or maximum 2 bar (29 psi)
Sterilization: Autoclaving (max. 134ºC), dry heat (max. 180ºC), flamed, otther methods according ISO 8199

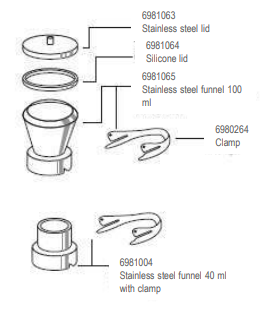

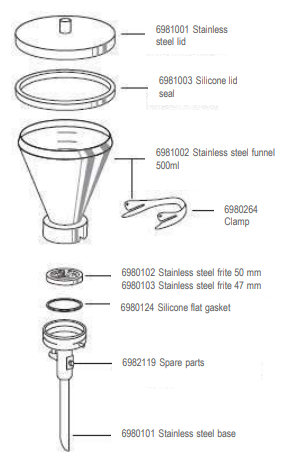

Parts and materials: Lid, funnel, base, support, clamp and tap made of stainless steel. Silicone flat gasket and silicone lid seal
Flow rate with water to 90% vacuum: 200 ml/min 0.2 µm membrane filter, 600 ml/min 0.45 µm membrane filter.
Filtration area: 12,5 cm2 Diameter filters: 50 -47 mm
